Research progress and development trends in adaptive cutting technology for shearers
-
摘要:
自适应截割技术是实现采煤机智能化的核心技术，对提升煤矿开采效率、提高安全性和资源利用率具有重要作用。因此，开展了自适应截割技术的综述研究，重点探讨了其技术原理及应用现状。根据核心功能和技术目标，将采煤机自适应截割技术划分为记忆截割、透明地质、煤岩识别和自适应控制4个研究内容。记忆截割通过记录历史数据来优化采煤路径，透明地质利用综合探测技术获取实时地质信息，煤岩识别技术根据不同的识别原理，可以分为基于物理参数的间接法、基于视觉的直接法、以及探地雷达和超声波等基于波动特性的探测法，以实现煤岩界面或煤岩性质的精确识别，自适应控制则通过自动化调节采煤机的运行参数。这些技术从多个角度提升了采煤机的智能化水平。然而，由于煤层地质条件及恶劣开采环境的影响，现有技术在适应性和经济性方面存在一些局限性。因此，针对未来采煤机自适应截割技术的发展趋势，提出了以下建议：促进记忆截割、透明地质与煤岩识别技术的融合，以实现更高效的煤层信息获取；采用多传感器融合技术，以提高煤岩识别的准确度和可靠性；发展基于大数据分析的智能决策支持系统，优化采煤机的运行策略，同时研究多领域协同仿真控制策略，以应对技术瓶颈并增强系统性能。
Abstract:Adaptive cutting technology is crucial for enabling intelligent shearers, significantly improving mining efficiency, safety, and resource utilization. Therefore, a comprehensive review of adaptive cutting technology has been conducted, focusing on its technical principles and current applications. Based on core functions and technical objectives, adaptive cutting technology is categorized into four primary research areas: memory cutting, transparent geology, coal-rock identification, and adaptive control. Memory cutting enhance cutting paths by recording historical data, while transparent geology leverages integrated detection technologies to acquire real-time geological information. Coal-rock identification techniques are classified according to recognition principles: indirect methods based on physical parameters, direct methods relying on visual information, and wave-based detection methods such as ground-penetrating radar and ultrasound. Adaptive control automates the adjustment of shearer operating parameters. Collectively, these technologies advance the intelligence of coal mining machines from various perspectives. Nevertheless, due to geological complexities and challenging mining environments, existing technologies face limitations in adaptability and cost-effectiveness. Therefore, future development of adaptive cutting technology should focus on integrating memory cutting, transparent geology, and coal-rock identification technologies to enhance coal seam data acquisition. Implementing multi-sensor fusion technology to improve the accuracy and reliability of coal-rock identification. Developing intelligent decision-support systems based on big data analytics to optimize mining operations and researching multi-domain collaborative simulation control strategies to address technical challenges and improve system performance.
-
-
![]()

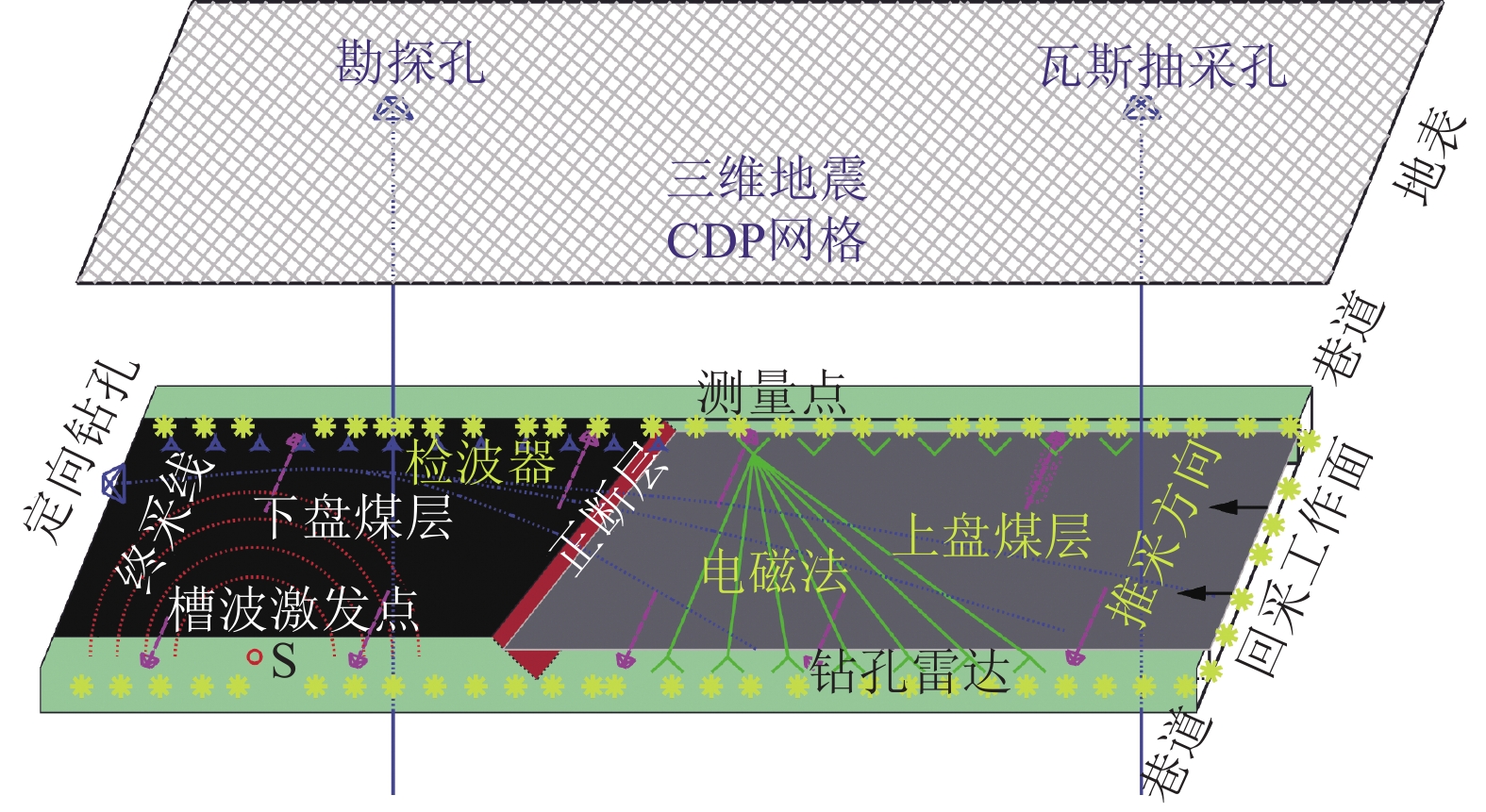

图 2 工作面综合探测示意
Figure 2. Schematic diagram of the comprehensive detection of the working face
![]()
图 3 基于透明地质的协同规划控制系统
Figure 3. Collaborative planning and control system based on transparent geology
![]()
图 6 预测截割顶底板岩层位置原理
Figure 6. Principle of identification position of cutting top and bottom slate
![]()
图 13 不同煤岩比例下的截齿红外图像
Figure 13. Infrared thermal image of picks under different coal-rock cutting ratio
![]()
图 15 煤岩红外图像采集与识别
Figure 15. Infrared image acquisition and recognition result of coal rock
![]()
图 17 节点式雷达探测与随采动态探测系统
Figure 17. Nodal GPR detection system and accompanying dynamic detection system
![]()
图 18 基于超声波技术煤岩界面识别原理
Figure 18. Coal-rock interface identification principle based on ultrasonic technology
表 1 有量纲时域统计参量对比
Table 1 Comparison of dimensional time-domain statistical parameters
有量纲指标 割煤状态（dm·s−2） 割顶状态（dm·s−2） 绝对值增幅/% 均方值 71.40 281.28 295 方差 71.40 281.28 295 方根幅值 5.73 8.69 52 平均幅值 6.76 11.27 67 有效值 8.45 16.77 98
下载: 导出CSV
表 2 无量纲时域统计参量对比
Table 2 Comparison of dimensionless time-domain statistical parameters
无量纲指标 割煤状态 割顶状态 绝对值增幅/% 波形指标 1.25 1.49 24 峰值指标 4.96 9.20 85 脉冲指标 6.20 13.69 120 裕度指标 7.31 17.76 143 峭度指标 0.04 0.03 −25
下载: 导出CSV
表 3 采煤机自适应截割技术对比分析
Table 3 Comparison and Analysis of Adaptive Cutting Technology for shearers
单点技术 核心内容 技术特点 应用场景 优劣势对比 记忆截割 利用历史截割数据生成最优截割路径以提升作业效率 基于历史数据、具备路径优化能力和较高的重复精确度 地质条件相对稳定且重复作业较多的工况 优点：路径优化、提高效率
缺点：对地质变化的适应性较差，需配合其他技术以应对动态变化透明地质 通过地质数据采集、处理和透明化展示，使得地质特征更加清晰 实时展现地质特征、数据可视化强 复杂地质结构下的采矿场景 优点：清晰展示地质特征，辅助决策
缺点：依赖高精度传感器和实时处理系统，可能存在成本高的问题煤岩识别 利用传感器技术实时识别煤岩分界，实现精准截割 识别精度高、适应复杂地质环境 煤岩混杂、地质变化显著的工况 优点：精确识别煤岩分界，减少误割率
缺点：对传感器性能和数据处理要求高，在数据缺失或误差大的条件下可能失效自适应控制 通过实时反馈控制算法，自动调节截割参数以适应不同工况 智能化高，实时调整截割速度、力度等关键参数 工况实时变化明显、需要灵活调整的场景 优点：灵活应对复杂工况，提升作业稳定性和安全性
缺点：对控制算法和实时计算要求高，依赖大量实时数据以保证精度和响应速度
下载: 导出CSV
-
[1] 高有进,杨艺,常亚军,等. 综采工作面智能化关键技术现状与展望[J]. 煤炭科学技术,2021,49(8):1−22. GAO Youjin,YANG Yi,CHANG Yajun,et al. Status and prospect of key technologies of intelligentization of fully-mechanized coal mining face[J]. Coal Science and Technology,2021,49(8):1−22.
[2] 王国法,杜毅博,徐亚军,等. 中国煤炭开采技术及装备50年发展与创新实践:纪念《煤炭科学技术》创刊50周年[J]. 煤炭科学技术,2023,51(1):1−18. WANG Guofa,DU Yibo,XU Yajun,et al. Development and innovation practice of China coal mining technology and equipment for 50 years:commemorate the 50th anniversary of the publication of coal science and technology[J]. Coal Science and Technology,2023,51(1):1−18.
[3] 李福涛,王忠宾,司垒,等. 基于振动信号的采煤机煤岩截割状态识别[J]. 煤炭工程,2022,54(1):123−127. LI Futao,WANG Zhongbin,SI Lei,et al. Coal cutting state recognition of shearer based on vibration signal[J]. Coal Engineering,2022,54(1):123−127.
[4] 巩师鑫,任怀伟,黄伟,等. 复杂起伏煤层自适应开采截割路径优化与仿真[J]. 煤炭科学技术,2023,51(S2):210−218. GONG Shixin,REN Huaiwei,HUANG Wei,et al. Optimization and simulation of adaptive mining cutting path in complex undulating coal seam[J]. Coal Science and Technology,2023,51(S2):210−218.
[5] 刘春生,陈金国. 基于单示范刀采煤机记忆截割的数学模型[J]. 煤炭科学技术,2011,39(3):71−73,103. LIU Chunsheng,CHEN Jinguo. Mathematic model of memory cutting for coal shearer based on single demo knife[J]. Coal Science and Technology,2011,39(3):71−73,103.
[6] 张强,张润鑫,刘峻铭,等. 煤矿智能化开采煤岩识别技术综述[J]. 煤炭科学技术,2022,50(2):1−26. ZHANG Qiang,ZHANG Runxin,LIU Junming,et al. Review on coal and rock identification technology for intelligent mining in coal mines[J]. Coal Science and Technology,2022,50(2):1−26.
[7] 薛国华. 基于透明地质的综采工作面三维煤层建模[J]. 工矿自动化,2022,48(4):135−141. XUE Guohua. Three-dimensional coal seam modeling of fully mechanized working face based on transparent geology[J]. Journal of Mine Automation,2022,48(4):135−141.
[8] 刘旭南,赵丽娟,盖东民,等. 基于采煤机可靠性的智能牵引调速系统研究[J]. 系统仿真学报,2016,28(7):1601−1608. LIU Xunan,ZHAO Lijuan,GAI Dongmin,et al. Research on intelligent hauling speed regulation system based on shearer’s reliability[J]. Journal of System Simulation,2016,28(7):1601−1608.
[9] 夏蒙健,刘洋. 煤矿采煤机智能化关键技术[J]. 工矿自动化,2023,49(S2):10−12. XIA Mengjian,LIU Yang. Intelligent key technologies of coal mine shearer[J]. Industry and Mine Automation,2023,49(S2):10−12.
[10] 王福忠,高颖. 采煤机截割滚筒轨迹的迭代学习跟踪控制[J]. 控制工程,2018,25(6):966−971. WANG Fuzhong,GAO Ying. Tracking control of shearer cutting-drum using iterative learning[J]. Control Engineering of China,2018,25(6):966−971.
[11] 刘春生,杨秋,李春华. 采煤机滚筒记忆程控截割的模糊控制系统仿真[J]. 煤炭学报,2008,33(7):822−825. doi: 10.3321/j.issn:0253-9993.2008.07.021 LIU Chunsheng,YANG Qiu,LI Chunhua. Simulation of shearer drum cutting with memory program controlling by fuzzy control[J]. Journal of China Coal Society,2008,33(7):822−825. doi: 10.3321/j.issn:0253-9993.2008.07.021
[12] 王忠宾,徐志鹏,董晓军. 基于人工免疫和记忆切割的采煤机滚筒自适应调高[J]. 煤炭学报,2009,34(10):1405−1409. doi: 10.3321/j.issn:0253-9993.2009.10.021 WANG Zhongbin,XU Zhipeng,DONG Xiaojun. Self-adaptive adjustment height of the drum in the shearer based on artificial immune and memory cutting[J]. Journal of China Coal Society,2009,34(10):1405−1409. doi: 10.3321/j.issn:0253-9993.2009.10.021
[13] 陈伟华,南鹏飞,闫孝姮,等. 基于深度学习的采煤机截割轨迹预测及模型优化[J]. 煤炭学报,2020,45(12):4209−4215. CHEN Weihua,NAN Pengfei,YAN Xiaoheng,et al. Prediction and model optimization of shearer memory cutting trajectory based on deep learning[J]. Journal of China Coal Society,2020,45(12):4209−4215.
[14] 齐爱玲,王雨,马宏伟. 基于改进门控循环神经网络的采煤机滚筒调高量预测[J]. 工矿自动化,2024,50(2):116−123. QI Ailing,WANG Yu,MA Hongwei. Prediction of height adjustment of shearer drum based on improved gated recurrent neural network[J]. Journal of Mine Automation,2024,50(2):116−123.
[15] 李重重,刘清. 基于截割顶底板高度预测模型的采煤机自动调高技术[J]. 工矿自动化,2024,50(1):9−16. LI Zhongzhong,LIU Qing. Automatic height adjustment technology of shearer based on cutting roof and floor height prediction model[J]. Journal of Mine Automation,2024,50(1):9−16.
[16] 程诚,吴洪状,刘送永. 基于B样条曲线拟合和蜉蝣算法的采煤机截割路径约束优化[J]. 煤炭科学技术,2024,52(S1):269−279. CHENG Cheng,WU Hongzhuang,LIU Songyong. Constraint optimization of shearer cutting path based on B-spline curve fitting and mayfly algorithm[J]. Coal Science and Technology,2024,52(S1):269−279.
[17] 程建远,王保利,范涛,等. 煤矿地质透明化典型应用场景及关键技术[J]. 煤炭科学技术,2022,50(7):1−12. CHENG Jianyuan,WANG Baoli,FAN Tao,et al. Typical application scenes and key technologies of coal mine geological transparency[J]. Coal Science and Technology,2022,50(7):1−12.
[18] 毛明仓,张孝斌,张玉良. 基于透明地质大数据智能精准开采技术研究[J]. 煤炭科学技术,2021,49(1):286−293. MAO Mingcang,ZHANG Xiaobin,ZHANG Yuliang. Research on intelligent and precision mining technology based on transparent geological big data[J]. Coal Science and Technology,2021,49(1):286−293.
[19] 王国法. 煤矿智能化最新技术进展与问题探讨[J]. 煤炭科学技术,2022,50(1):1−27. doi: 10.3969/j.issn.0253-2336.2022.1.mtkxjs202201001 WANG Guofa. New technological progress of coal mine intelligence and its problems[J]. Coal Science and Technology,2022,50(1):1−27. doi: 10.3969/j.issn.0253-2336.2022.1.mtkxjs202201001
[20] 刘再斌,刘程,刘文明,等. 透明工作面多属性动态建模技术[J]. 煤炭学报,2020,45(7):2628−2635. LIU Zaibin,LIU Cheng,LIU Wenming,et al. Multi-attribute dynamic modeling technique for transparent working face[J]. Journal of China Coal Society,2020,45(7):2628−2635.
[21] 袁亮. 煤炭精准开采科学构想[J]. 煤炭学报,2017,42(1):1−7. YUAN Liang. Scientific conception of precision coal mining[J]. Journal of China Coal Society,2017,42(1):1−7.
[22] 袁亮,张平松. 煤炭精准开采透明地质条件的重构与思考[J]. 煤炭学报,2020,45(7):2346−2356. YUAN Liang,ZHANG Pingsong. Framework and thinking of transparent geological conditions for precise mining of coal[J]. Journal of China Coal Society,2020,45(7):2346−2356.
[23] 侯运炳,张弘,毛善君,等. 基于高精度三维动态地质模型的采煤机自适应智能截割技术研究[J]. 矿业科学学报,2023,8(1):26−38. HOU Yunbing,ZHANG Hong,MAO Shanjun,et al. Adaptive intelligent cutting technology of the shearer based on the high-precision three-dimensional dynamic geological model[J]. Journal of Mining Science and Technology,2023,8(1):26−38.
[24] 李森,李重重,刘清. 基于透明地质的综采工作面规划截割协同控制系统[J]. 煤炭科学技术,2023,51(4):175−184. LI Sen,LI Zhongzhong,LIU Qing. Planned cutting and collaborative control system for fully-mechanized mining face based on transparent geology[J]. Coal Science and Technology,2023,51(4):175−184.
[25] 王海舰,黄梦蝶,高兴宇,等. 考虑截齿损耗的多传感信息融合煤岩界面感知识别[J]. 煤炭学报,2021,46(6):1995−2008. WANG Haijian,HUANG Mengdie,GAO Xingyu,et al. Coal-rock interface recognition based on multi-sensor information fusion considering pick wear[J]. Journal of China Coal Society,2021,46(6):1995−2008.
[26] 苏秀平,李威,徐志鹏. 采煤机工作面截割试验分析[J]. 煤炭学报,2013,38(9):1681−1685. SU Xiuping,LI Wei,XU Zhipeng. Test analysis of shearer cutting at coal face[J]. Journal of China Coal Society,2013,38(9):1681−1685.
[27] 田立勇,毛君,王启铭. 基于采煤机摇臂惰轮轴受力分析的综合煤岩识别方法[J]. 煤炭学报,2016,41(3):782−787. TIAN Liyong,MAO Jun,WANG Qiming. Coal and rock identification method based on the force of idler shaft in shearer’s ranging arm[J]. Journal of China Coal Society,2016,41(3):782−787.
[28] 刘春生,刘延婷,刘若涵,等. 采煤机截割状态与煤岩识别的关联载荷特征模型[J]. 煤炭学报,2022,47(1):527−540. LIU Chunsheng,LIU Yanting,LIU Ruohan,et al. Correlation load characteristic model between shearer cutting state and coal-rock recognition[J]. Journal of China Coal Society,2022,47(1):527−540.
[29] LI F T,WANG Z B,SI L,et al. Traction resistance analysis and cutting state recognition of shearer based on numerical simulation[J]. Measurement,2024,237:115261. doi: 10.1016/j.measurement.2024.115261
[30] JIANG K,WAN L R,ZENG Q L,et al. New effective method for identification of coal and roof interface based on cutting performance[J]. Arabian Journal for Science and Engineering,2023,48(9):11351−11362. doi: 10.1007/s13369-022-07400-5
[31] 赵健博. 采煤机截割载荷识别与智能控制方法研究[D]. 西安科技大学机械工程,2022. ZHAO Jianbo. Research on cutting load identification and intelligent control method of shearer[D]. Xi`an University of Science and Technology,2022
[32] 刘俊利,赵豪杰,李长有. 基于采煤机滚筒截割振动特性的煤岩识别方法[J]. 煤炭科学技术,2013,41(10):93−95,116. LIU Junli,ZHAO Haojie,LI Changyou. Coal-rock recognition method based on cutting vibration features of coal shearer drums[J]. Coal Science and Technology,2013,41(10):93−95,116.
[33] 杨健健,姜海,吉晓东,等. 基于小波包特征提取的煤岩硬度振动识别方法[J]. 煤炭科学技术,2015,43(12):114−117,179. YANG Jianjian,JIANG Hai,JI Xiaodong,et al. Vibration identification method of coal and rock hardness based on wavelet packet features[J]. Coal Science and Technology,2015,43(12):114−117,179.
[34] 丛晓妍,王增才,王保平,等. 基于EMD与峭度滤波的煤岩界面识别[J]. 振动 测试与诊断,2015,35(5):950-954,995-996. CONG Xiaoyan,WANG Zengcai,WANG Baoping,et al. Application of filtering method based on EMD and kurtosis in coal-rock interface recognition[J]. Journal of Vibration,Measurement & Diagnosis,2015,35(5):950-954,995-996.
[35] 任洁,刘頔. 基于采煤机振动时域特性的煤岩识别方法研究[J]. 煤炭工程,2016,48(3):106−109. REN Jie,LIU Di. Recognition method of coal-rock interface based on time-domain vibration characteristics of coal cutter[J]. Coal Engineering,2016,48(3):106−109.
[36] SI L,WANG Z B,TAN C,et al. Vibration-based signal analysis for shearer cutting status recognition based on local mean decomposition and fuzzy C-means clustering[J]. Applied Sciences,2017,7(2):164. doi: 10.3390/app7020164
[37] 许静. 采煤机煤岩截割模式识别关键技术研究[D]. 徐州:中国矿业大学,2018. XU Jing. Research on key technologies of coal-rock cutting pattern recognition for shearer[D]. Xuzhou:China University of Mining and Technology,2018.
[38] LI C P,PENG T H,ZHU Y M,et al. Noise reduction method of shearer’s cutting sound signal under strong background noise[J]. Measurement and Control,2022,55(7-8):783−794. doi: 10.1177/00202940221091547
[39] 尹玉玺,周常飞,许志鹏,等. 基于改进1DCNN的煤岩识别模型研究[J]. 工矿自动化,2023,49(1):116−122. YIN Yuxi,ZHOU Changfei,XU Zhipeng,et al. Research on coal and rock recognition model based on improved 1DCNN[J]. Journal of Mine Automation,2023,49(1):116−122.
[40] LI F T,WANG Z B,SI L,et al. A novel recognition method of shearer cutting status based on SDP image and MCK-DCNN[J]. Proceedings of the Institution of Mechanical Engineers,Part C:Journal of Mechanical Engineering Science,2024,238(5):1495−1506. doi: 10.1177/09544062231185486
[41] 黄韶杰. 基于灰度阈值法的煤岩界面识别研究[J]. 工矿自动化,2013,39(5):52−54. doi: 10.7526/j.issn.1671-251X.2013.05.015 HUANG Shaojie. Research of coal-rock interface identification based on gray threshold method[J]. Industry and Mine Automation,2013,39(5):52−54. doi: 10.7526/j.issn.1671-251X.2013.05.015
[42] 李嘉豪,司垒,王忠宾,等. 综放工作面煤矸识别技术及其应用[J]. 仪器仪表学报,2024,45(1):1−15. LI Jiahao,SI Lei,WANG Zhongbin,et al. Coal gangue identification technology and its application in fully-mechanized coal mining face[J]. Chinese Journal of Scientific Instrument,2024,45(1):1−15.
[43] 王超,张强. 基于LBP和GLCM的煤岩图像特征提取与识别方法[J]. 煤矿安全,2020,51(4):129−132. WANG Chao,ZHANG Qiang. Coal rock image feature extraction and recognition method based on LBP and GLCM[J]. Safety in Coal Mines,2020,51(4):129−132.
[44] 张万枝,王增才. 基于视觉技术的煤岩特征分析与识别[J]. 煤炭技术,2014,33(10):272−274. ZHANG Wanzhi,WANG Zengcai. Characteristic analysis and recognition of coal and rock based on visual technology[J]. Coal Technology,2014,33(10):272−274.
[45] 黄韶杰,刘建功. 基于高斯混合聚类的煤岩识别技术研究[J]. 煤炭学报,2015,40(S2):576−582. HUANG Shaojie,LIU Jiangong. Research of coal-rock recognition technology based on GMM clustering analysis[J]. Journal of China Coal Society,2015,40(S2):576−582.
[46] 伍云霞,田一民. 基于字典学习的煤岩图像特征提取与识别方法[J]. 煤炭学报,2016,41(12):3190−3196. WU Yunxia,TIAN Yimin. Method of coal-rock image feature extraction and recognition based on dictionary learning[J]. Journal of China Coal Society,2016,41(12):3190−3196.
[47] 高峰,殷欣,刘泉声,等. 基于塔式池化架构的采掘工作面煤岩图像识别方法[J]. 煤炭学报,2021,46(12):4088−4102. GAO Feng,YIN Xin,LIU Quansheng,et al. Coal-rock image recognition method for mining and heading face based on spatial pyramid pooling structure[J]. Journal of China Coal Society,2021,46(12):4088−4102.
[48] 司垒,王忠宾,熊祥祥,等. 基于改进U-net网络模型的综采工作面煤岩识别方法[J]. 煤炭学报,2021,46(S1):578−589. SI Lei,WANG Zhongbin,XIONG Xiangxiang,et al. Coal-rock recognition method of fully-mechanized coal mining face based on improved U-net network model[J]. Journal of China Coal Society,2021,46(S1):578−589.
[49] 闫志蕊,王宏伟,耿毅德. 基于改进DeeplabV3+和迁移学习的煤岩界面图像识别方法[J]. 煤炭科学技术,2023,51(S1):429−439. YAN Zhirui,WANG Hongwei,GENG Yide. Coal-rock interface image recognition method based on improved DeeplabV3+ and transfer learning[J]. Coal Science and Technology,2023,51(S1):429−439.
[50] 张云,童亮,来兴平,等. 基于机器视觉的煤尘环境下掘进空间煤岩界面感知与精准识别[J]. 煤炭学报,2024,49(7):3276−3290. ZHANG Yun,TONG Liang,LAI Xingping,et al. Coal-rock interface perception and accurate recognition in heading face under coal dust environment based on machine vision[J]. Journal of China Coal Society,2024,49(7):3276−3290.
[51] 张强,王海舰,郭桐,等. 基于截齿截割红外热像的采煤机煤岩界面识别研究[J]. 煤炭科学技术,2017,45(5):22−27. ZHANG Qiang,WANG Haijian,GUO Tong,et al. Study on coal-rock interface recognition of coal shearer based on cutting infrared thermal image of picks[J]. Coal Science and Technology,2017,45(5):22−27.
[52] 张强,刘志恒,王海舰,等. 基于截齿振动及温度特性的煤岩识别研究[J]. 煤炭科学技术,2018,46(3):1−9,18. ZHANG Qiang,LIU Zhiheng,WANG Haijian,et al. Study on coal and rock identification based on vibration and temperature features of picks[J]. Coal Science and Technology,2018,46(3):1−9,18.
[53] 刘治翔,孙战,尹家阔,等. 基于红外热像和振动信号的煤岩识别实验研究[J]. 工矿自动化,2024,50(4):78−83,152. LIU Zhixiang,SUN Zhan,YIN Jiakuo,et al. Experimental study on coal rock recognition based on infrared thermal imaging and vibration signals[J]. Journal of Mine Automation,2024,50(4):78−83,152.
[54] 张强,孙绍安,张坤,等. 基于主动红外激励的煤岩界面识别[J]. 煤炭学报,2020,45(9):3363−3370. ZHANG Qiang,SUN Shaoan,ZHANG Kun,et al. Coal and rock interface identification based on active infrared excitation[J]. Journal of China Coal Society,2020,45(9):3363−3370.
[55] 王海舰,刘丽丽,卢士林,等. 多参数耦合优化煤岩界面主动红外感知识别[J]. 振动 测试与诊断,2022,42(2):308-314,408−409. WANG Haijian,LIU Lili,LU Shilin,et al. Coal-rock interface recognition based on active infrared and coupling optimization of multiple parameters[J]. Journal of Vibration,Measurement & Diagnosis,2022,42(2):308-314,408-409.
[56] 王海舰,刘丽丽,赵雪梅,等. 基于改进PSPnet-MobileNetV2的煤岩界面快速精准识别[J]. 振动 测试与诊断,2024,44(4):793−800,832−833. WANG Haijian,LIU Lili,ZHAO Xuemei,et al. Rapid and accurate identification of coal-rock interface based on improved PSPnet-MobileNetV2[J]. Journal of Vibration,Measurement & Diagnosis,2024,44(4):793−800,832−833.
[57] 王昕,丁恩杰,胡克想,等. 煤岩散射特性对探地雷达探测煤岩界面的影响[J]. 中国矿业大学学报,2016,45(1):34−41. WANG Xin,DING Enjie,HU Kexiang,et al. Effects of coal-rock scattering characteristics on the GPR detection of coal-rock interface[J]. Journal of China University of Mining & Technology,2016,45(1):34−41.
[58] 刘帅,赵文生,高思伟. 超宽带探地雷达煤层厚度探测试验研究[J]. 煤炭科学技术,2019,47(8):207−212. LIU Shuai,ZHAO Wensheng,GAO Siwei. Experimental study on coal seam thickness measurement of ultra-wide band ground penetrating radar[J]. Coal Science and Technology,2019,47(8):207−212.
[59] 苗曙光,刘晓文,李淮江,等. 基于探地雷达的煤岩界面探测数据解释方法[J]. 工矿自动化,2019,45(1):35−39. MIAO Shuguang,LIU Xiaowen,LI Huaijiang,et al. Data interpretation method of coal-rock interface detection based on ground penetrating radar[J]. Industry and Mine Automation,2019,45(1):35−39.
[60] 刘万里,马修泽,张学亮. 基于探地雷达的特厚煤层厚度动态探测技术[J]. 煤炭学报,2021,46(8):2706−2714. LIU Wanli,MA Xiuze,ZHANG Xueliang. Dynamic detection technology of extra-thick coal seam thickness based on ground penetrating radar[J]. Journal of China Coal Society,2021,46(8):2706−2714.
[61] 许献磊,陈令洲,彭苏萍,等. 矿井煤岩界面节点式雷达快速动态探测系统及实验研究[J]. 煤炭学报,2024,49(4):1964−1975. XU Xianlei,CHEN Lingzhou,PENG Suping,et al. Mining coal-rock interface nodal GPR rapid dynamic detection system and experimental research[J]. Journal of China Coal Society,2024,49(4):1964−1975.
[62] 李力,刘佳鹏,魏伟. 基于经验小波变换的煤岩界面识别超声回波处理方法研究[J]. 煤炭学报,2019,44(S1):370−377. LI Li,LIU Jiapeng,WEI Wei. Signal processing method on ultrasonic echo from coal-rock interface based on EWT[J]. Journal of China Coal Society,2019,44(S1):370−377.
[63] 李力,唐汝琪,魏伟. 黏弹性VTI煤层介质超声波传播模型建立与分析[J]. 煤炭学报,2015,40(12):2987−2994. LI Li,TANG Ruqi,WEI Wei. Modeling and analyzing the propagation of ultrasonic waves in viscoelastic VTI medium of coal seam[J]. Journal of China Coal Society,2015,40(12):2987−2994.
[64] 李力,欧阳春平. 基于超声相控阵的煤岩界面识别研究[J]. 中国矿业大学学报,2017,46(3):485−492. LI Li,OUYANG Chunping. Research on coal-rock interface recognition based on ultrasonic phased array[J]. Journal of China University of Mining & Technology,2017,46(3):485−492.
[65] 李力,魏伟,唐汝琪. 基于改进S变换的煤岩界面超声反射信号处理[J]. 煤炭学报,2015,40(11):2579−2586. LI Li,WEI Wei,TANG Ruqi. Processing of ultrasonic reflection signal from coal-rock interface using modified S-transform[J]. Journal of China Coal Society,2015,40(11):2579−2586.
[66] 李力,施万发,魏伟. 基于VMD的多相介质超声回波检测技术[J]. 煤炭学报,2018,43(10):2944−2950. LI Li,SHI Wanfa,WEI Wei. Ultrasonic detection research on multiphase medium based on VMD[J]. Journal of China Coal Society,2018,43(10):2944−2950.
[67] 毛君,杨振华,潘德文. 基于自适应模糊滑模变结构的采煤机自动调高控制策略[J]. 中国机械工程,2016,27(3):360−364. doi: 10.3969/j.issn.1004-132X.2016.03.014 MAO Jun,YANG Zhenhua,PAN Dewen. Control strategy of shearer automatic height adjusting based on adaptive fuzzy sliding-mode variable structure[J]. China Mechanical Engineering,2016,27(3):360−364. doi: 10.3969/j.issn.1004-132X.2016.03.014
[68] 李鹏,孔屹刚,张敬芳,等. 基于负载敏感的采煤机调高液压系统效率分析[J]. 煤炭工程,2017,49(6):103−106. doi: 10.11799/ce201706030 LI Peng,KONG Yigang,ZHANG Jingfang,et al. Efficiency analysis of shearer with height-adjusting hydraulic system based on load sensitive technology[J]. Coal Engineering,2017,49(6):103−106. doi: 10.11799/ce201706030
[69] 王慧,宋宇宁. 滚筒截割负载扰动对采煤机调高的影响[J]. 中国机械工程,2018,29(2):127−133. doi: 10.3969/j.issn.1004-132X.2018.02.001 WANG Hui,SONG Yuning. Influences of drum cutting load disturbances on shearer height adjustments[J]. China Mechanical Engineering,2018,29(2):127−133. doi: 10.3969/j.issn.1004-132X.2018.02.001
[70] 李雪梅. 基于变速趋近律的采煤机调高滑模控制研究[J]. 控制工程,2019,26(4):724−728. LI Xuemei. Research on control method of sliding mode based on the variable rate reaching law for shearer automatic height adjusting[J]. Control Engineering of China,2019,26(4):724−728.
[71] 赵丽娟,王雅东,张美晨,等. 复杂煤层条件下采煤机自适应截割控制策略[J]. 煤炭学报,2022,47(1):541−563. ZHAO Lijuan,WANG Yadong,ZHANG Meichen,et al. Research on self-adaptive cutting control strategy of shearer in complex coal seam[J]. Journal of China Coal Society,2022,47(1):541−563.
[72] 王雅东,赵丽娟,张美晨. 采煤机自适应调高控制策略[J]. 煤炭学报,2022,47(9):3505−3522. WANG Yadong,ZHAO Lijuan,ZHANG Meichen. Research on self-adaptive height adjustment control strategy of shearer[J]. Journal of China Coal Society,2022,47(9):3505−3522.
[73] 葛帅帅,秦大同,胡明辉. 突变工况下滚筒式采煤机调速控制策略研究[J]. 煤炭学报,2015,40(11):2569−2578. GE Shuaishuai,QIN Datong,HU Minghui. Research on drum shearer speed control strategies under impact conditions[J]. Journal of China Coal Society,2015,40(11):2569−2578.
[74] 秦大同,王镇,胡明辉,等. 基于多目标优化的采煤机滚筒最优运动参数的动态匹配[J]. 煤炭学报,2015,40(S2):532−539. QIN Datong,WANG Zhen,HU Minghui,et al. Dynamic matching of optimal drum movement parameters of shearer based on multi-objective optimization[J]. Journal of China Coal Society,2015,40(S2):532−539.
[75] 刘永刚,闫忠良,秦大同,等. 采煤机无人自适应变速截割控制方法[J]. 中南大学学报(自然科学版),2017,48(6):1513−1521. doi: 10.11817/j.issn.1672-7207.2017.06.014 LIU Yonggang,YAN Zhongliang,QIN Datong,et al. Adaptive control method of unmanned shearer with variable speed cutting[J]. Journal of Central South University (Science and Technology),2017,48(6):1513−1521. doi: 10.11817/j.issn.1672-7207.2017.06.014
[76] 刘永刚,侯立良,秦大同,等. 基于综合截割性能优化的采煤机变速截割控制[J]. 东北大学学报(自然科学版),2018,39(1):118−122,137. LIU Yonggang,HOU Liliang,QIN Datong,et al. Variable speed cutting control of shearer based on cutting performance optimization[J]. Journal of Northeastern University (Natural Science),2018,39(1):118−122,137.
-
