Design and application of automatic cable dragging system for shearer
-
摘要:
为满足薄煤层综采工作面无人化需求，针对现有采煤机电缆存在需要专人看护的问题，设计了采煤机电缆自动拖拽系统，系统额定功率15 kW，工作面最大长度400 m，适应采煤机最大速度30 m/min。重点介绍了采煤机电缆自动拖拽系统的整体设计、参数设计和适配设计，并详细阐述了基于动力学仿真分析的拖缆链传动系统设计、适用于复杂工作面的轨道浮动对中技术、基于速度与转矩的自适应控制技术、电缆快速拆装技术等4项关键技术，解决了系统设计、机械结构、控制策略、故障保护等难题，实现了电缆夹始终处于微张紧状态。在张家峁煤矿14301工作面进行了工程应用，实现了全工作面自适应常态化运行，跟机率达到94.7%。该系统结构合理、可靠性高、拆装维护方便，可在现有工作面进行改造，可推广性强，促进了薄煤层无人化开采技术的进步。
Abstract:In order to meet the unmanned needs of thin coal seam fully mechanized mining faces and address the issue of requiring dedicated personnel to monitor the cables of existing coal mining machines, an automatic cable dragging system for coal mining machines has been designed, The system has a rated power of 15 kW, a maximum length of 400m for the working face, and is suitable for a maximum speed of 30 m/min, This article focuses on the overall design, parameter design, and adaptation design of the automatic cable dragging system for coal mining machines, It elaborates in detail on four key technologies: the design of the cable chain transmission system based on dynamic simulation analysis, the track floating alignment technology suitable for complex working faces, the self adaptive control technology based on speed and torque, and the fast cable disassembly and assembly technology. The system design, mechanical structure, control strategy, fault protection, and other difficulties have been solved, It solves the problems of system design, mechanical structure, control strategy, and fault protection, and achieves that the cable clamp is always in a slightly tensioned state, Engineering application was carried out in the 14301 working face of Zhangjiamao Coal Mine, achieving adaptive and normalized operation of the entire working face, with a follow-up rate of 94.7%, The system has a reasonable structure, high reliability, convenient disassembly and maintenance, and can be retrofitted on existing working faces, It has strong scalability and promotes the progress of unmanned mining technology in thin coal seams.
-
Keywords:
- shearer /
- cable dragging /
- dynamic simulation /
- adaptive control /
- floating structure /
- unmanned
-
-
![]()

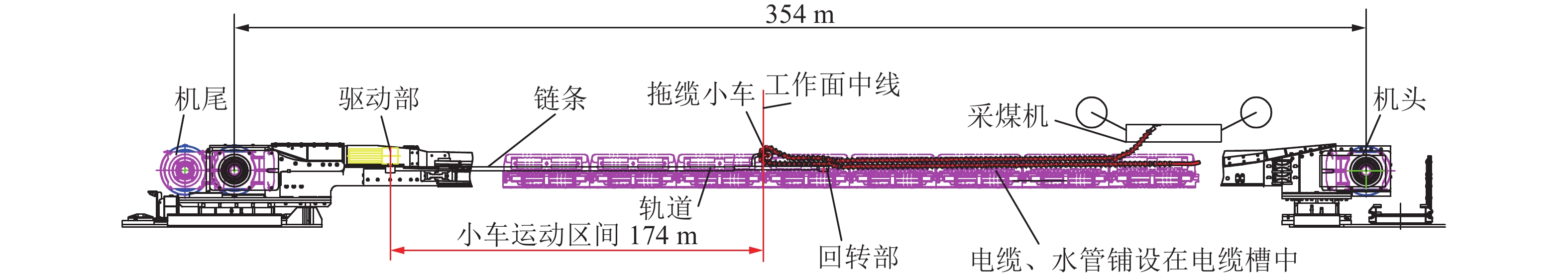

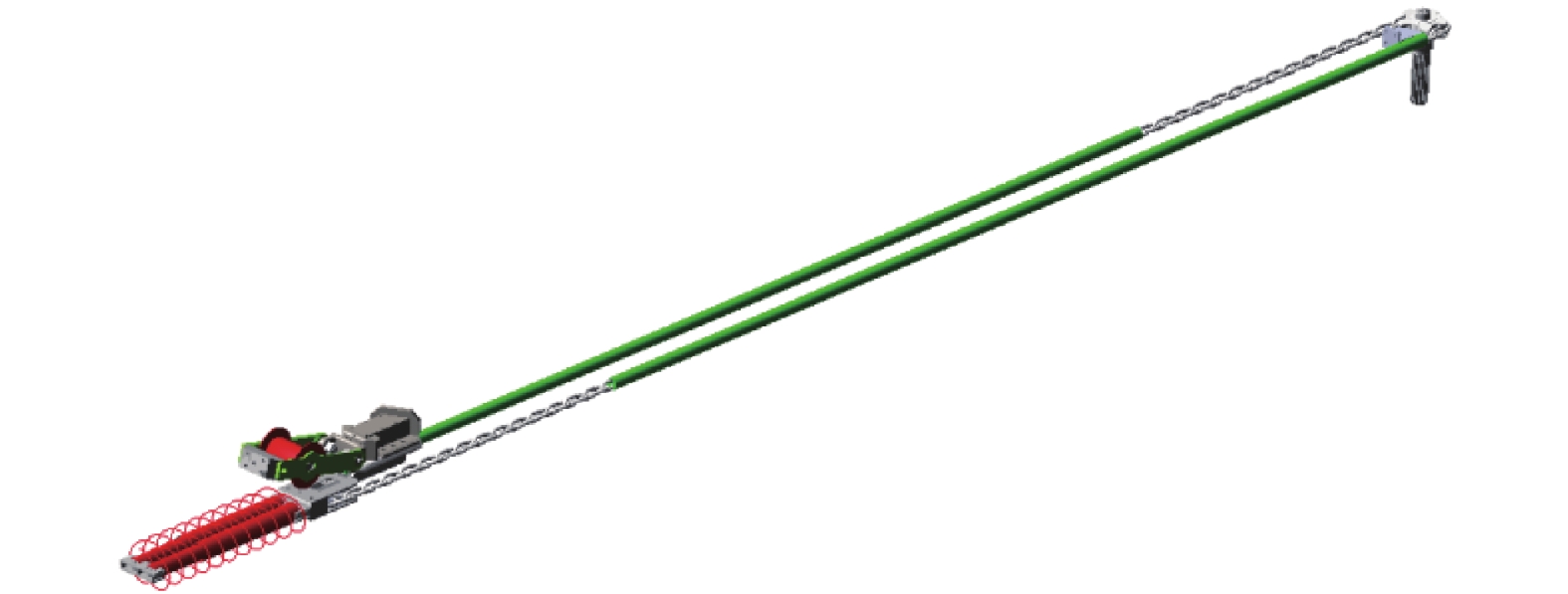

图 1 采煤机电缆自动拖拽系统整体布置
Figure 1. The general layout of automatic cable dragging system for shearer

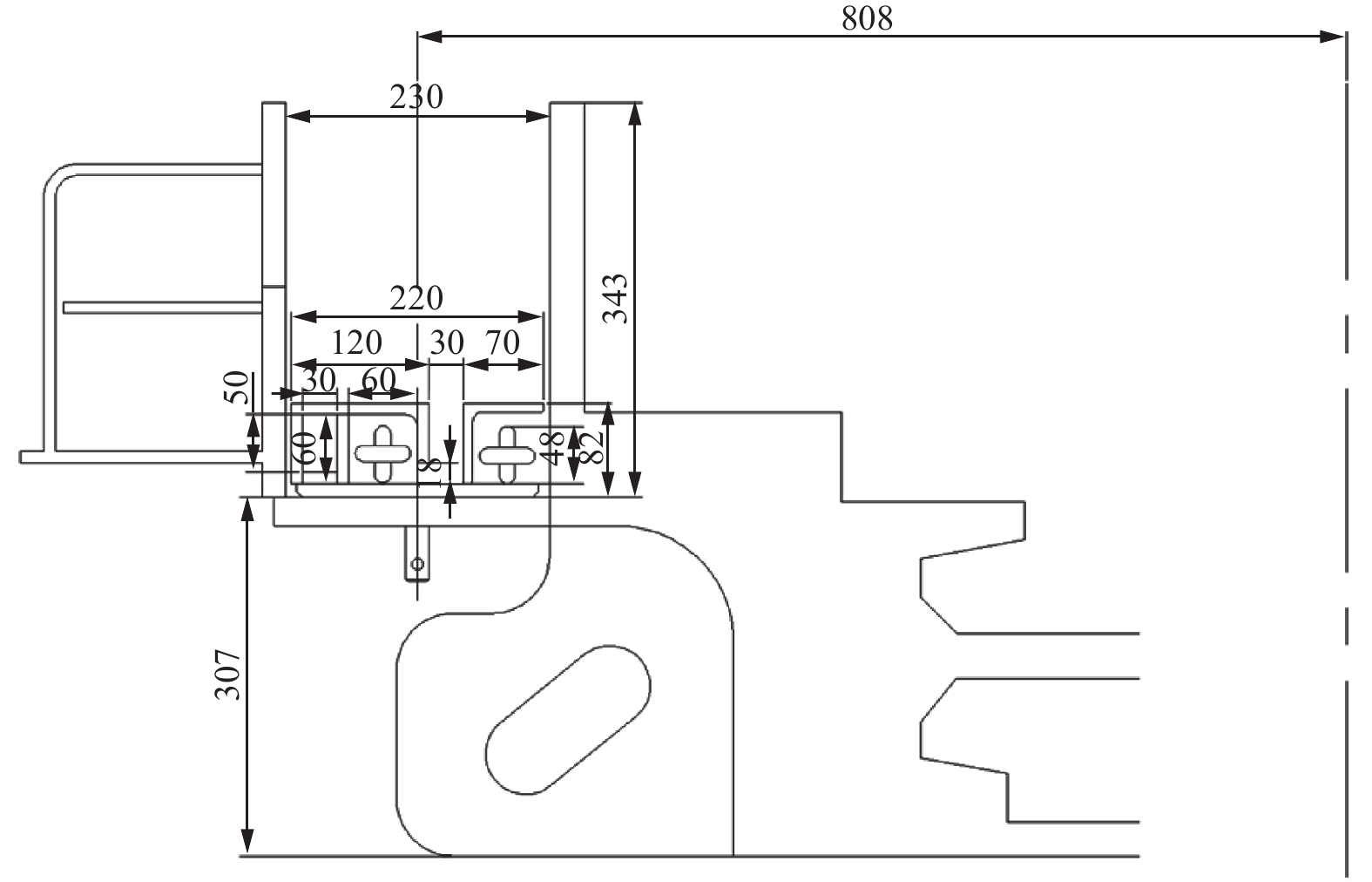

表 1 技术参数
Table 1 Technical parameters
参数 数值 电机功率P/kW 15 链条规格 18*64-C 采煤机速度vc/（m·s−1） 0～30 拖缆小车速度vt/（m·s−1） 0～15 减速器减速比i 70.95 电机转速n/(r·min−1) 1451
下载: 导出CSV
-
[1] 王国法. 煤矿智能化最新技术进展与问题探讨[J]. 煤炭科学技术,2022,50(1):1−27. WANG Guofa. New technological progress of coal mine intelligence and its problems[J]. Coal Science and Technology,2022,50(1):1−27.
[2] 王国法,杜毅博,徐亚军,等. 中国煤炭开采技术及装备50年发展与创新实践−纪念《煤炭科学技术》创刊50周年[J]. 煤炭科学技术,2023,51(1):1−18. WANG Guofa,DU Yibo,XU Yajun,et al. Development and innovation practice of China coal mining technology and equipment for 50 years: Commemorate the 50th anniversary of the publication of Coal Science and Technology[J]. Coal Science and Technology,2023,51(1):1−18.
[3] 崔 耀. 采煤机电缆拖拽装置跟机自适应控制系统的研究与应用[J]. 煤矿机械, 2021, 42（9）: 137−141 CUI Yao. Research and application of following self-adaptive control system for cable dragging device of shearer.[J]. Coal Mine Machinery, 2021, 42（9）: 137−141.
[4] 崔 耀,原长锁. 采煤机电缆自动拖拽系统研发与试验[J]. 煤矿机械,2021,42(8):29−31. CUI Yao,YUAN Changsuo. Design and test of automatic cable towing system of shearer[J]. Coal Mine Machinery,2021,42(8):29−31.
[5] 曹 杨. 采煤机新型自动拖缆系统设计[J]. 煤炭技术,2022,41(4):171−174. CAO Yang,Design of new automatic cable-towing system for shearer[J]. Coal Technology,2022,41(4):171−174.
[6] 谷 斌,综采工作面采煤机自动拖缆系统研发及应用[J]. 煤炭工程,2021,53(8):184−188. GU Bin,Development and application of automatic cable towing system for shearer in fully mechanized mining face [J]. Coal Engineering,2021,53(8):184−188.
[7] 马 凯. 梭车输送机构张紧力研究[J]. 煤炭技术,2016,35(4):234−235. MA Kai,Tension research of shuttle car conveying mechanism [J]. Coal Technology,2016,35(4):234−235.
[8] 丁守坤. 重型刮板输送机预张力的计算及伸缩机尾 紧链油缸的确定[J]. 煤矿机械,2010,31(10):3−6. DING Shoukun. Calculation of pretension of heavy-duty scraper conveyor and determination of tight chained cylinder of expansiontail[J]. Coal Mine Machinery,2010,31(10):3−6.
[9] 白晓辉,任中全,刘海燕. 刮板输送机中部槽弯曲角度设计计算[J]. 煤矿机械,2011,32(6):21−22. BAI Xiaohui,REN Zhongquan,LIU Haiyan. Design calculation of rotated angle of middle trough in scraper conveyor[J]. Coal Mine Machinery,2011,32(6):21−22.
[10] 谭宇硕. 采煤机电缆拖拽装置传动部件应力分析[J]. 煤炭技术,2018,37(6):288−290. TAN Yushuo. Stress analysis of transmission components of shearer cable dragging device[J]. Coal Technology,2018,37(6):288−290.
[11] 崔 耀,叶 壮. 基于5G+云边端协同技术的采煤机智能调高调速控制系统设计与应用[J]. 煤炭科学技术,2023,51(6):205−216. CUI Yao,YE Zhuang. Research on cloud-edge-terminal collaborative intelligent control of coal shearer based on 5G communication[J]. Coal Science and Technology,2023,51(6):205−216.
[12] 张 平,沈 丰,张成武,等. 基于机器学习的采煤机拖缆装置控制系统研究[J]. 煤矿机械,2022,43(3):105−107. ZHANG Ping,SHEN Feng,ZHANG Chengwu,et al. Research on control system of shearer towing device based on machine learning[J]. Coal Mine Machinery,2022,43(3):105−107.
[13] 杨 立. 采煤机电缆自动拖拽装置试验台设计研究[J]. 煤矿机械,2020,41(11):16−19. YANG Li. Design and research on testbed of automatic cable dragging device for shearer[J]. Coal Mine Machinery,2020,41(11):16−19.
[14] 孙 鹭,王 宁,毕 伟,等. 综采工作面采煤机线缆智能联动系统设计[J]. 煤矿机械,2019,40(12):4−5. SUN Lu,WANG Ning,BI Wei,et al. Design of intelligent linkage system for shearer cable in fully mechanized mining face[J]. Coal Mine Machinery,2019,40(12):4−5.
[15] 汪佳彪,王忠宾,张 霖,等. 基于以太网和CAN总线的液压支架电液控制系统研究[J]. 煤炭学报,2016,41(6):1575−1581. WANG Jiabiao,WANG Zhongbin,ZHANG Lin,et al. Research on electro-hydraulic control system of hydraulic support based on Ethernet and CAN-Bus[J]. Journal of China Coal Society,2016,41(6):1575−1581.
