超深保护层开采巷道围岩控制技术研究
Study on surrounding rock control technology for mining roadway of ultra-deep protective layer
-

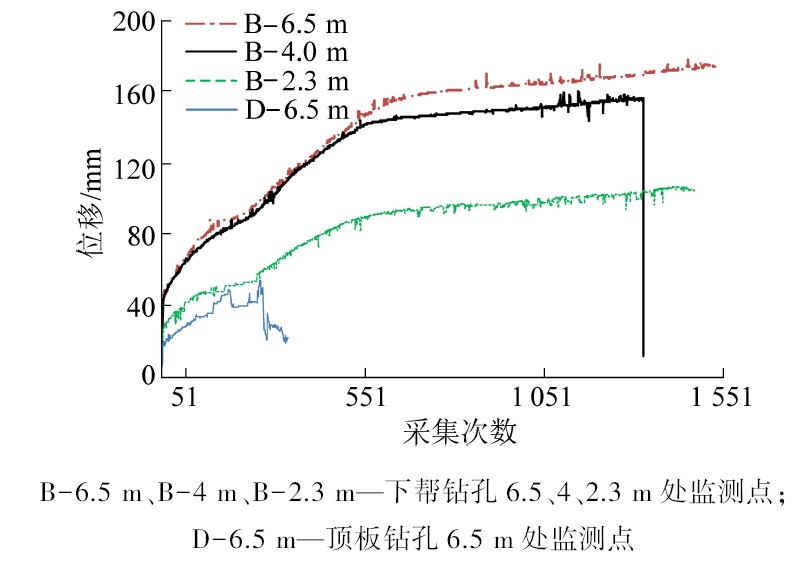

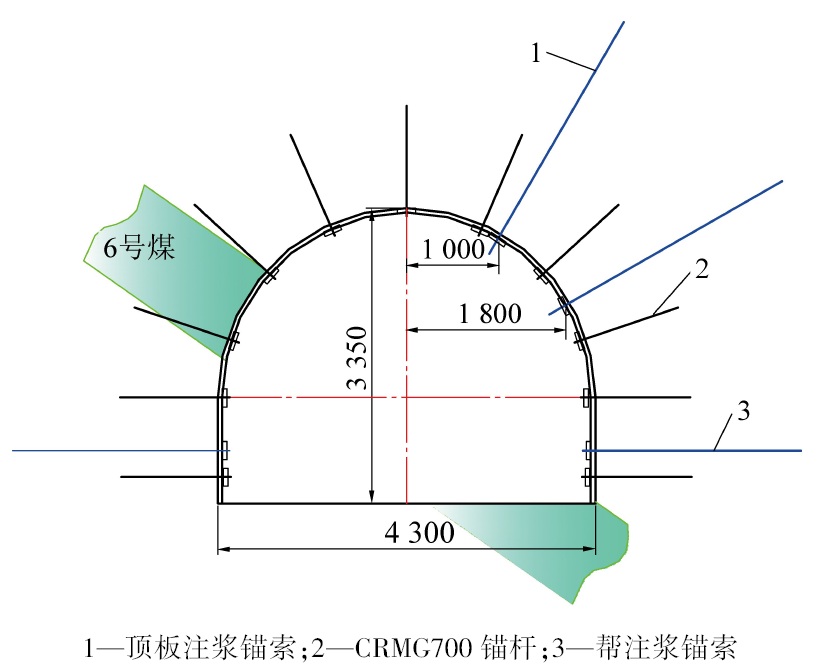

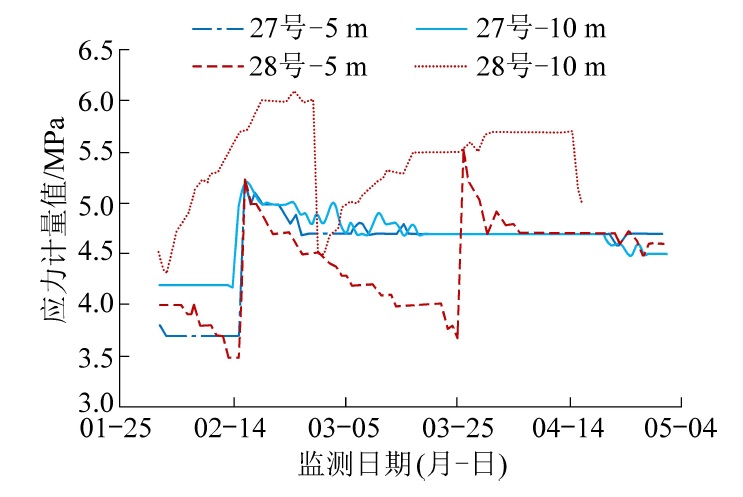

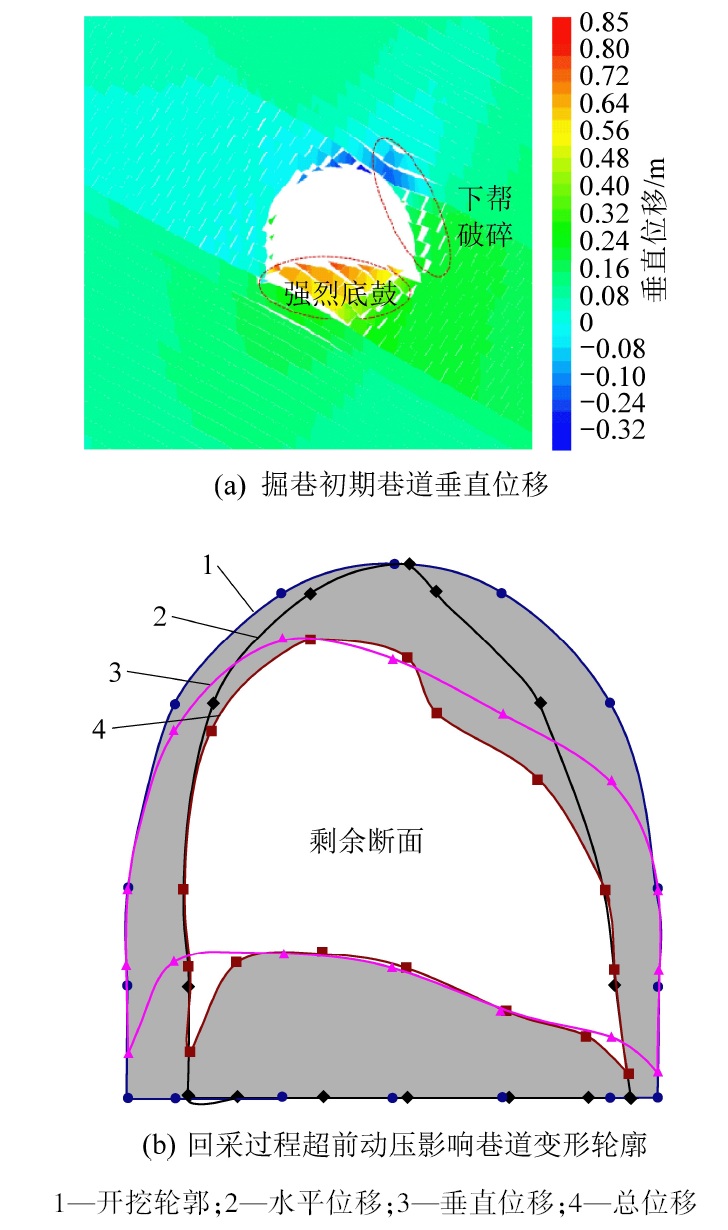

摘要: 华丰煤矿1 300 m超深保护层回采巷道稳定性控制是影响矿井安全高效生产的关键问题。基于现场地质力学综合测试、围岩非均匀性破坏机理研究，提出了超高强热处理预应力锚杆-锚注联合支护方案。研发了700 MPa级超高强热处理锚杆，其破断强度达850 MPa，冲击吸收功达100 J，并首次在1 300 m埋深煤矿巷道进行了工业性试验。开展了巷道锚杆支护力、顶板四点离层与围岩钻孔应力等多参量变化在线监测，分析得出：超深巷道在爆破开挖扰动下，距离掘进工作面80 m后围岩整体变形基本稳定，但围岩深部应力仍然长期蠕变且呈现大幅值增降循环规律。试验结果表明，相比较于同巷顶板全锚索支护方式，锚杆-锚注联合支护下回采超前段巷道变形量整体降低了50%，掘进支护效率提高了20%。Abstract: The stability control of the mining roadway in the 1 300 m ultra-deep protective layer of Huafeng Colliery is a bottleneck problem affecting the safe and efficient production of the mine.Based on the comprehensive testing of on-site geomechanics and the study of the specific failure mechanism of surrounding rock,a combined support plan of ultra-high-strength heat-treated pre-stressed bolt with cable-grouting is proposed.The 700 MPa grade ultra-high-strength heat-treated bolt was developed with reaking strength of 850 MPa and an impact absorption power of 100 J;underground industrial test was firstly carried out in the 1 300 m deep coal mine roadway.The monitoring of multi-parameter changes such as roadway bolt support force,four-point roof separation and surrounding rock borehole stress was carried out on site,and the analysis obtained:under the disturbance of blasting excavation,the overall surrounding rock deformation is basically stable after a distance of 80 m from the front of the ultra-deep roadway;however,the deep stress of the surrounding rock still creeps for a long time and exhibits a large-scale increase and decrease cycle.The test results showed that,compared with the roof full-anchor cable support method,the mining face deformed ahead of the entire roadway.Reduce by 50%,and increase the efficiency of excavation support by 20%.
-
期刊类型引用(4)
1. 庞杰，张兴华. 基于地应力测试的高地应力巷道破坏机理及控制. 煤炭技术. 2023(04): 73-77 .
百度学术
2. 朱宗奎，鲁岩. 基于锚固应力叠加控制原理的多层支护数值模拟实验研究. 实验技术与管理. 2023(04): 125-132 . 百度学术
3. 康红普，姜鹏飞，冯彦军，赵凯凯. 煤矿巷道围岩卸压技术及应用. 煤炭科学技术. 2022(06): 1-15 . 本站查看
4. 张大明，孙贵洋，李刚. 双重采动影响下复采煤层巷道稳定性分析与维护方案设计. 工程地质学报. 2021(04): 1028-1036 . 百度学术
其他类型引用(2)
