Numerical simulation study on the effect of gas extraction in one face and four lanes on the spontaneous combustion of coal remains in the mining area
-
摘要:
为研究高瓦斯易自燃煤层不同瓦斯治理条件下采空区自燃“三带”及温度场分布变化规律，结合某高瓦斯易自燃工作面的实际条件，构建了“一面四巷”采空区自然发火物理模型，将程序升温试验得到的煤样氧化耗氧参数和放热参数应用到数值模拟中，分别研究了不同供风量、低抽流量及高抽流量对采空区自燃“三带”及温度场分布的影响，定量分析了氧化带最大宽度、氧化带面积和采空区最高温度点等参数随供风量、低抽流量及高抽流量的变化规律。结果表明：在模拟测试范围内，提高供风量、低抽流量及高抽流量均会造成采空区漏风量增多，不利于采空区遗煤自燃防治；最高温度点变化不明显（仅在1 K范围内变化），高抽流量变化对采空区氧化带宽度和面积及最高温度的影响大于供风量和低抽流量；氧化带最大宽度随供风量增大而增加，采空区最高温度和氧化带面积随供风量增加而减小，供风量从1 600 m3/min增加到1 900 m3/min时，氧化带最大宽度增加了2 m（74～76 m），最高温度降低了0.1 K（315.38～315.28 K），氧化带面积减小了180.08 m2（8 669.49～8 489.41 m2）；氧化带最大宽度随低抽流量增大而增加，采空区最高温度和氧化带面积均随抽采流量增大而增加，低抽流量从200 m3/min增加到300 m3/min时，氧化带最大宽度增加了2 m（75～77 m），最高温度升高了0.152 K（315.340～315.492 K），氧化带面积扩大了51.56 m2（8 553.79～8 605.35 m2）。高抽流量从80 m3/min增加到240 m3/min时，氧化带最大宽度保持在75 m，最高温度升高了0.76 K（315.13～315.89 K）。
Abstract:In order to study the “three zones” of spontaneous combustion in gob under different gas treatment conditions of high gas prone to spontaneous combustion and the change law of temperature field distribution, combined with the actual conditions of a high gas prone to spontaneous combustion working surface, a physical model of spontaneous ignition in goaf with “one face and four lanes” was constructed. The oxidation oxygen consumption and heat release parameters of coal samples obtained from temperature programmed experiment were applied to numerical simulation. The influence of different air supply, low and high pumping flow on the “three zones” of spontaneous combustion and temperature field distribution in goaf was studied. The variation of parameters such as maximum width of oxidation zone, area of oxidation zone and maximum temperature point of goaf with air supply, low and high pumping flow was quantitatively analyzed. The results show that in the range of simulation test, increasing air supply, low pumping flow and high pumping flow will cause the increase of air leakage in goaf, which is not conducive to the prevention and control of spontaneous combustion of coal left in goaf. The maximum temperature point does not change significantly (only within the range of 1K), and the influence of the change of high pumping flow rate on the width and area of the oxidation zone and the maximum temperature of the goaf is greater than that of the air supply volume and low pumping flow rate. The maximum width of oxidation zone increases with the increase of air supply, and the maximum temperature of goaf and the area of oxidation zone decrease with the increase of air supply. When the air supply increases from 1600 m3/min to 1900 m3/min, the maximum width of oxidation zone increases by 2 m (74−76 m), and the maximum temperature decreases by 0.1 K (315.38−315.28 K). The oxidation zone area decreased by 180.08 m2 (8 669.49−8 489.41 m2). The maximum width of oxidation zone increases with the increase of low extraction flow rate, the maximum temperature of goaf and the area of oxidation zone increase with the increase of extraction flow rate. When the low extraction flow rate increases from 200 m3/min to 300 m3/min, the maximum width of oxidation zone increases by 2 m (75−77 m). The maximum temperature increased by 0.152 K (315.34−315.492 K), and the oxidation zone area expanded by 51.56 m2 (8 553.79−8 605.35 m2). When the high pumping rate increased from 80 m3/min to 240 m3/min, the maximum width of the oxidation zone remained at about 75 m, and the maximum temperature increased by 0.76 K (315.13−315.89 K).
-
-
![]()

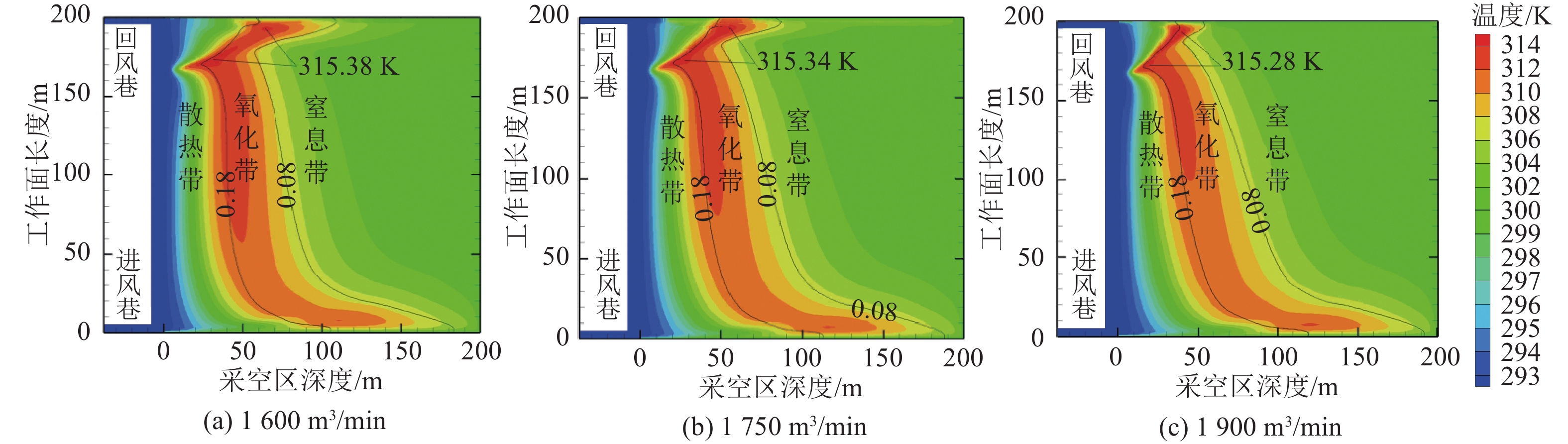

图 2 不同供风量下采空区自燃“三带”及温度场分布
Figure 2. Distribution of spontaneous combustion "three zones" and temperature field in goaf under different air supply volume
![]()

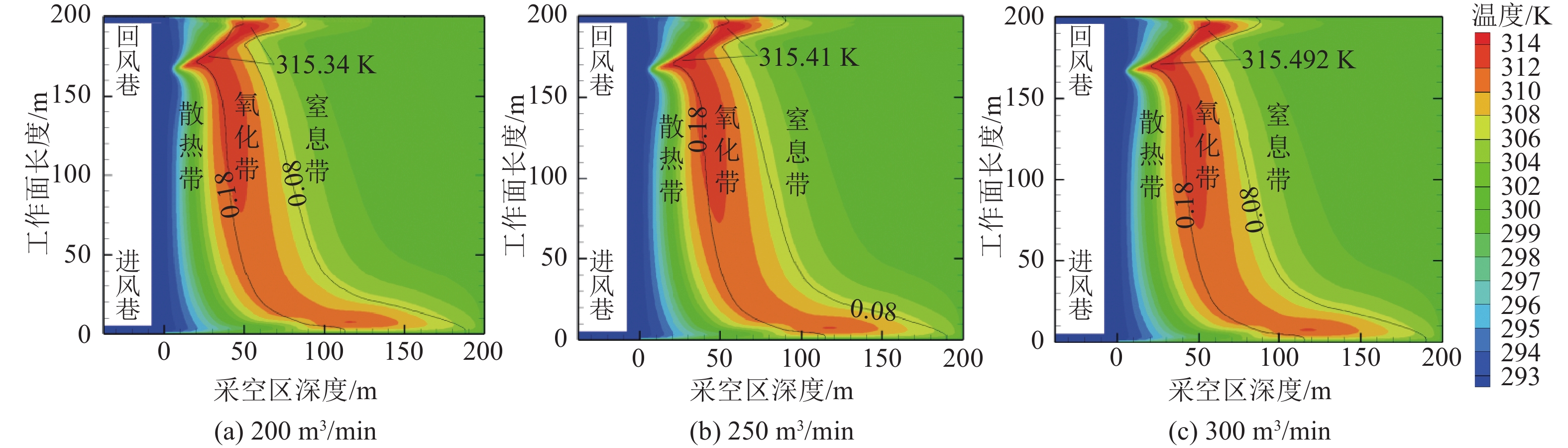

图 3 不同低抽流量下采空区自燃“三带”及温度场分布
Figure 3. Distribution of spontaneous combustion “three zones” and temperature field in goaf under different low pumping flow rates
![]()

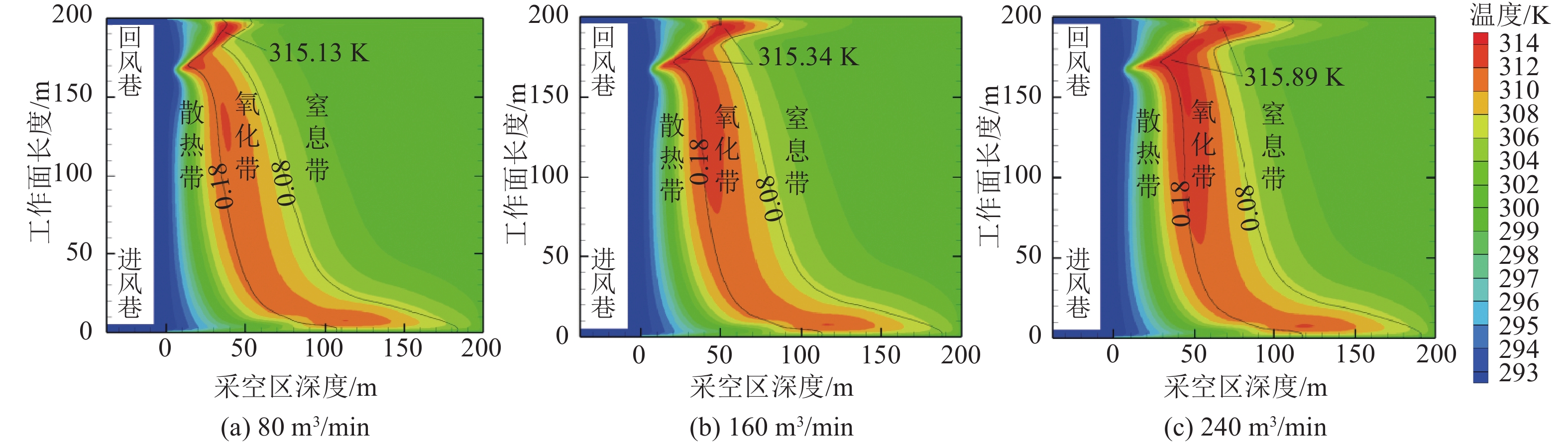

图 4 不同高抽流量下采空区自燃“三带”及温度场分布
Figure 4. Distribution of spontaneous combustion “three zones” and temperature field in goaf under different high pumping flow rates

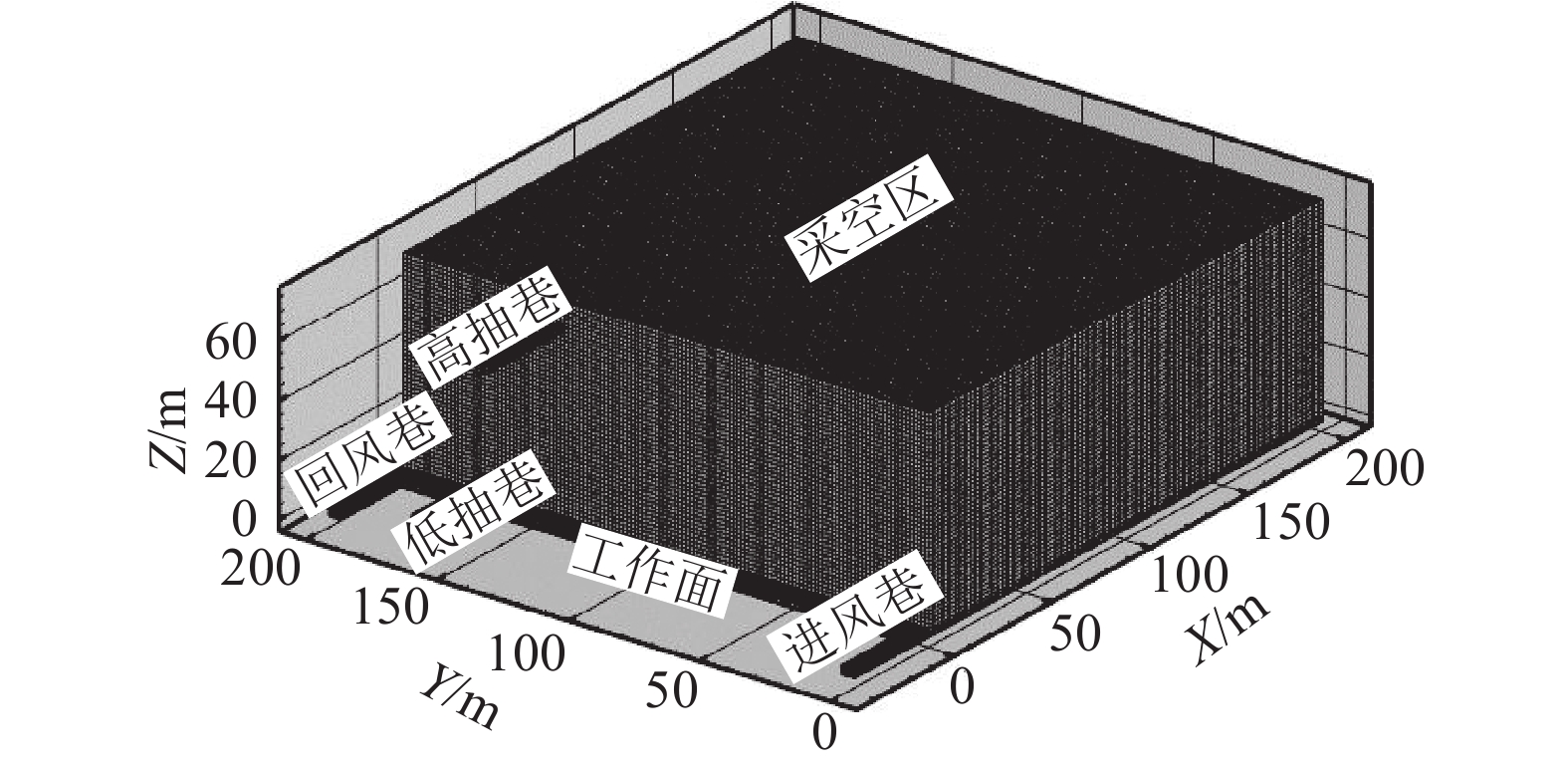

表 1 采空区模型几何参数
Table 1 Geometric parameters of goaf model
部位 巷道规格（X×Y×Z）/m×m×m 工作面 8×200.3×2.8 采空区 200×200.3×75 进风巷 30×5×3.2 回风巷 30×4.6×3.2 高抽巷 38×2.6×2.7 低抽巷 38×4×2.8
下载: 导出CSV
表 2 模拟参数设定
Table 2 Simulation parameter settings
序号 初始及边
界条件参数设定 序号 初始及边
界条件参数设定 1 求解器 压力基隐式
求解器7 煤导热系数 0.9 W/(m·K) 2 湍流模型 k-ε双方程
模型8 遗煤密度 1 410 kg/m3 3 能量 打开 9 遗煤比热容 1 200 J /(kg·K) 4 时间 稳态 10 组分方程
收敛指标10−5 5 采空区固壁 无滑移 11 能量收敛指标 10−6 6 组分运输模型 methane-air 12 其他参数
收敛指标10−6
下载: 导出CSV
表 3 不同供风量下采空区氧化带范围和最高温度
Table 3 Oxidation zone range and maximum temperature of goaf under different air supply
供风量/
（m3·min−1）进风侧 中部 回风侧 采空区
最高温
度/K范围/m 宽度/m 范围/m 宽度/m 范围/m 宽度/m 1 600 107~181 74 24~60 36 58~104 46 315.38 1 750 112~187 75 20~56 36 49~82 33 315.34 1 900 117~193 76 16~53 37 33~53 20 315.28
下载: 导出CSV
表 4 不同供风量下采空区自燃“三带”面积
Table 4 Area of spontaneous combustion “three zones” in goaf under different air supply volume
供风量/
（m3·min−1）散热带 氧化带 窒息带 面积/m2 占比/% 面积/m2 占比/% 面积/m2 占比/% 1 600 9 021.23 22.55 8 669.49 21.67 22 309.28 55.77 1 750 9 025.59 22.56 8 553.79 21.38 22 420.62 56.05 1 900 9 144.36 22.86 8 489.41 21.22 22 366.23 55.92
下载: 导出CSV
表 5 不同低抽流量下采空区氧化带范围和最高温度
Table 5 Oxidation zone range and maximum temperature of goaf under different low pumping flow rates
低抽流量/
（m3·min−1）进风侧 中部 回风侧 采空区最
高温度/K范围/m 宽度/m 范围/m 宽度/m 范围/m 宽度/m 200 112~187 75 20~56 36 49~82 33 315.34 250 113~189 76 20~57 37 52~87 35 315.41 300 114~191 77 20~59 39 53~88 35 315.492
下载: 导出CSV
表 6 不同低抽流量下采空区自燃“三带”面积
Table 6 Area of spontaneous combustion "three zones" in goaf under different low pumping flow rates
低抽流量/
（m3·min−1）散热带 氧化带 窒息带 面积/m2 占比/% 面积/m2 占比/% 面积/m2 占比/% 200 9 025.59 22.56 8 553.79 21.38 22 420.62 56.05 250 9 329.79 23.32 8 573.4 21.43 22 096.81 55.24 300 9 505.42 23.76 8 605.35 21.51 21 889.23 54.72
下载: 导出CSV
表 7 不同高抽流量下采空区氧化带范围和最高温度
Table 7 Oxidation zone range and maximum temperature of goaf under different high pumping flow rates
不同高抽流量/
（m3·min−1）进风侧 中部 回风侧 采空区最
高温度/K范围/m 宽度/m 范围/m 宽度/m 范围/m 宽度/m 80 108~182 75 13~47 34 34~53 19 315.13 160 112~187 75 20~56 36 49~82 33 315.34 240 116~191 75 28~68 40 63~111 48 315.89
下载: 导出CSV
表 8 不同高抽流量下采空区自燃“三带”面积
Table 8 Area of spontaneous combustion "three zones" in goaf under different high pumping flow rates
不同高抽流量/
（m3·min−1）散热带 氧化带 窒息带 面积/m2 占比/% 面积/m2 占比/% 面积/m2 占比/% 80 8073.67 20.18 8113.88 20.28 23812.45 59.53 160 9025.59 22.56 8553.79 21.38 22420.62 56.05 240 9964.82 24.91 8867.32 22.17 21167.86 52.92
下载: 导出CSV
-
